Loop Antenna 2000

Loop Antenna 2000; Miller, J.W.; Los (ID = 2085825) Radio part Loop Antenna 2000; Miller, J.W.; Los (ID = 2085828) Radio part
Loop Antenna 2000; Miller, J.W.; Los (ID = 2085829) Radio part
Use red slider bar for more.
Loop Antenna 2000; Miller, J.W.; Los (ID = 2085825) Radio part
Miller, J.W.; Los: Loop Antenna 2000 [Radio part] ID = 2085825 1400x1478
Select picture or schematic to display from thumbnails on the right and click for download.
For model Loop Antenna 2000, Miller, J.W.; Los Angeles (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Miller, J.W.; Los Angeles (CA)
Year: 1963 Category: Radio part (not a module)
Wave bands - without
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Loop Antenna 2000 - Miller, J.W.; Los Angeles CA
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 9 x 0.75 x 0.75 inch / 229 x 19 x 19 mm
Notes

Inductance = 240uh. Q = 450. Designed for AM Band.

Materials include Ferrite Core.

Removable mounting board.

Net weight (2.2 lb = 1 kg) 0 lb 3 oz (0.188 lb) / 0.085 kg

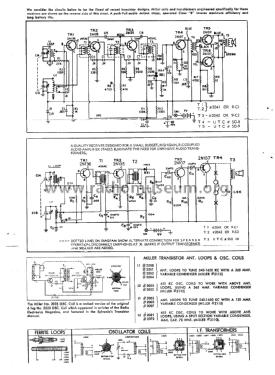

Mentioned in - - Manufacturers Literature (Miller Data Sheet for Transistor Coils & IF Transformers)

Model page created by Jack Sorensen. See "Data change" for further contributors.
