Pixie Intercom Radio 143X Superhet Version

Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2609611) Radio

Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2609994) Radio

Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2609613) Radio
Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 685780) Radio Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 685781) Radio
Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 709769) Radio Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 1066970) Radio
Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 1066971) Radio Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2562190) Radio
Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2562192) Radio Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2562193) Radio
Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2562194) Radio Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 2562195) Radio
Use red slider bar for more.
Pixie Intercom Radio 143X; Miniradios Ltd; (ID = 685780) Radio
Miniradios Ltd;: Pixie Intercom Radio 143X [Radio] ID = 685780 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pixie Intercom Radio 143X Superhet Version, Miniradios Ltd; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Miniradios Ltd; London
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner

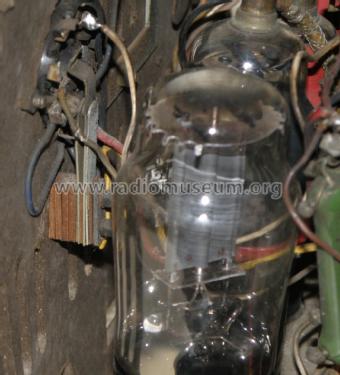

Valves / Tubes 5: CCH35 EF39 EBC33 EL32 CY31
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: Pixie Intercom Radio 143X [Superhet Version] - Miniradios Ltd; London
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 8 x 5.5 x 5.25 inch / 203 x 140 x 133 mm
Notes

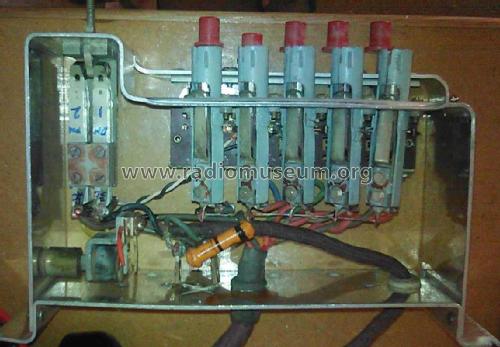

Compact 2 band radio. 2 Octal sockets on rear, one is for optional battery vibrator power unit, the other connects to a control box that the radio sits on. This box selects upto 4 intercom sub stations via seperate 3 core cable. The set was advertised in Argentina & has been found in Australia.

The valve line up suggests a circuit similar to the Ferguson 203U.

The radio could be used "standalone", or used as a car radio with optional vibrator unit, or as the heart of an intercom system (see other products for this manufacturer).

The cabinet could be burgundy or cream.

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Miniradios Ltd; London
Here you find 3 models, 3 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
