Ricofunk VHF FM Transceiver RTH-2006

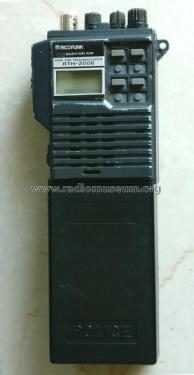

Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565871) Amat TRX Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565872) Amat TRX

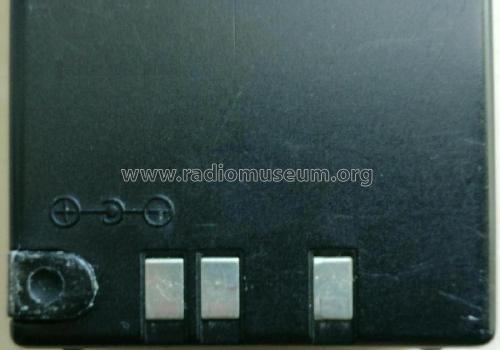

Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565873) Amat TRX Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565874) Amat TRX
Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565875) Amat TRX Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565876) Amat TRX
Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565877) Amat TRX Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565878) Amat TRX
Use red slider bar for more.
Ricofunk VHF FM Transceiver RTH-2006; Minix, Hannover (ID = 2565871) Amat TRX
Minix, Hannover: Ricofunk VHF FM Transceiver RTH-2006 [Amat TRX] ID = 2565871 1083x2089
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ricofunk VHF FM Transceiver RTH-2006, Minix, Hannover

Country:  Germany
Manufacturer / Brand:  Minix, Hannover
Brand

Richter & Co; Hannover
Year: 1985 ?? Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands FM Broadcast Band Only
Details
Power type and voltage Batteries / addl. power jack / NiMh 7,2 / 6-15 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Ricofunk VHF FM Transceiver RTH-2006 - Minix, Hannover
Material Metal case
Dimensions (WHD) 70 x 172 x 35 mm / 2.8 x 6.8 x 1.4 inch
Notes

Type: Professional land mobile transceiver (Equal  to Yaesu FTH-2006)

Frequency range
depending on version:

A: 134-146 MHz
B: 146-160 MHz
C: 160-174 MHz
AS1: 140-153 MHz
BS1: 153-167 MHz
BS2: 156-170 MHz

  • Tuning steps depending on version: Channelized in 5 or 12.5 kHz steps
  • Mode: FM
  • Channels/memory management: 10 regular
  • Repeater shift/offset: Freely programmable
  • Power supply: 6-15 VDC

Current drain/power consumption:
RX: 19-150 mA
TX: Max 1.5 A

Antenna impedance/connector: 50 Ω / BNC

Dimensions (W*H*D): 55*?*32 mm (2.16*?*1.26")

Other features:

RECEIVER SECTION

Double conversion superheterodyne
1st IF: 21.8 MHz
2nd IF: 455 KHz

External speaker connector.

TRANSMITTER SECTION

  • RF output power: Hi: 2-5 W (Depending on battery type/voltage)
  • Modulation system: Variable reactance
  • FM deviation: ±5 KHz
  • Spurious emissions: Less than -60 dB
  • Microphone impedance/connector: 2 kΩ / 2-pin

MISCELLANEOUS

Manufactured: Japan, 198x-198x (Discontinued)

Related documents:

Service manual (6.9 MB)
Power module: M57796MA (For version A & AS1)
Power module: M57796H (For version B, BS1, BS2 & C)

Modifications: Programming mod (128 KB)

Options/Accessories:

FNB-20
FTS-16
F5D-8

NiCd battery pack. 7.2 V, 600 mAh
CTCSS/PL encoder/decoder unit
Five-tone encoder/decoder unit



Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
