VHF Marine Radio Seefunkgerät C872S Mariner 55
Minix, Hannover
- Country
- Germany
- Manufacturer / Brand
- Minix, Hannover
- Year
- 1990 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 223472
-
- Brand: Richter & Co; Hannover

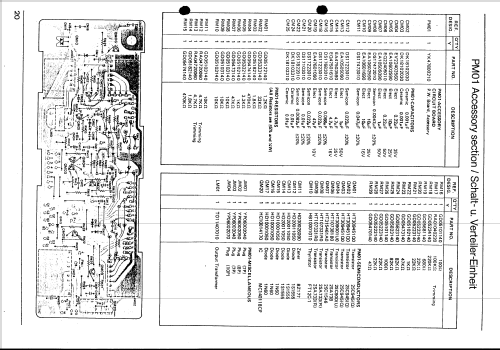

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12,6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF Marine Radio Seefunkgerät C872S Mariner 55 - Minix, Hannover
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 220 x 70 x 335 mm / 8.7 x 2.8 x 13.2 inch
- Notes
- Seefunkgerät, 55 Kanäle, Frequenzmodulation, Frequenzbereich 156,050 bis 162,025 MHz.
Zweikanalüberwachung (jeweiliger Arbeitskanal und Kanal 16), Sendeleistung 25W/1 W.
Hergestellt in Japan von Standard Communications Corp.
FTZ-Nr. S34 38214
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
