• Year
  • 1972/1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97249
    • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

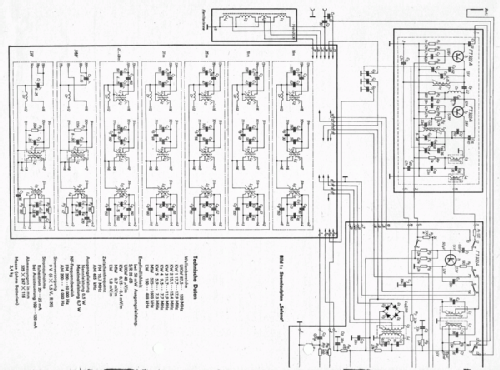

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

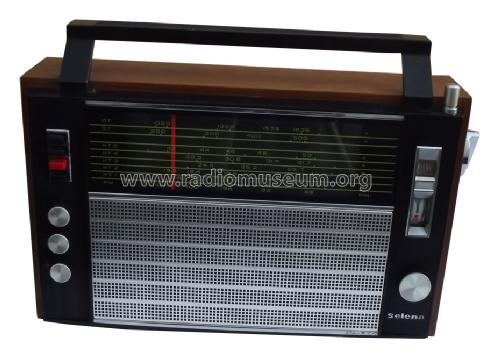

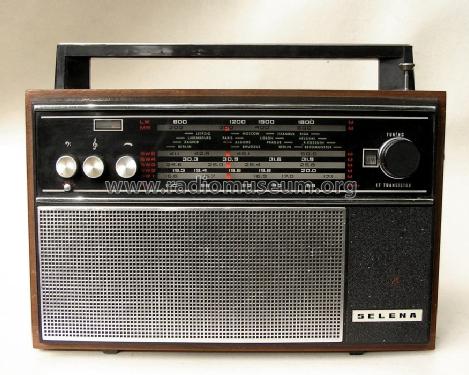

  • Model: Selena - Minsk Radio Works; Minsk
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 352 x 261 x 116 mm / 13.9 x 10.3 x 4.6 inch
  • Notes
  • Coverage MW, LW, 5 SW and FM. Analog portable russian radio set "Okean" (see RMorg). Model name "Selena" for export. The original Okean 203 was produced in 1972. The Okean 204 as its successor was introduced in 1973.
  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Price in first year of sale
  • 132.00 RUB
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
