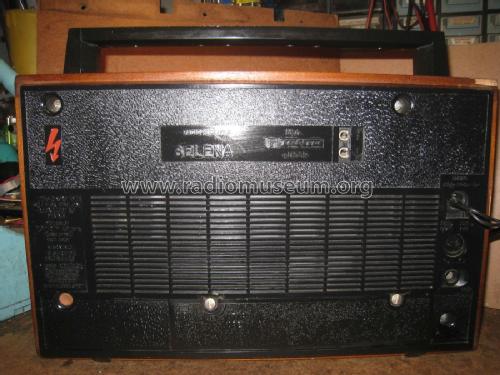

Selena {Селена} B-210 {Б-210}

Minsk Radio Works; Minsk

  • Year
  • 1975 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 127977
    • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

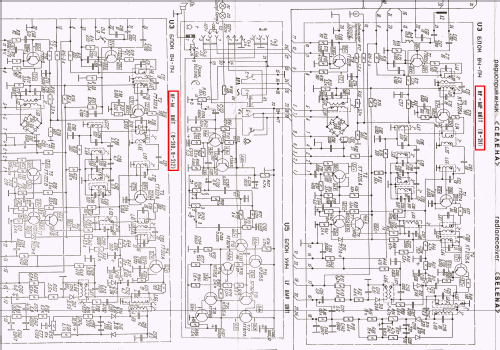

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 19
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 110-127; 220-240 / 6 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Selena {Селена} B-210 {Б-210} - Minsk Radio Works; Minsk
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 367 x 254 x 124 mm / 14.4 x 10 x 4.9 inch
  • Notes
  • Similar to B212 model but with different short waveband options.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
