• Year
  • 1976 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 223091

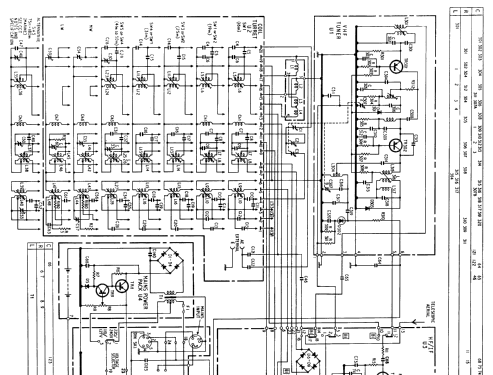

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 19
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 127; 240 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.75 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Selena MB B206 [mains/battery] - Vega brand, Technical and
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 360 x 248 x 115 mm / 14.2 x 9.8 x 4.5 inch
  • Notes
  • This portable receiver operates on mains (2-prong, non-UK) and battery, and covers the following wavebands:

    • LW: 150 - 408 kHz
    • MW: 525 - 1605 kHz
    • SW5: 5.97 - 7.3 MHz
    • SW4: 9.5 - 9.77 MHz
    • SW3: 11.7 - 12.1 MHz
    • SW2: 15.1 - 15.45 MHz
    • SW1: 17.7 - 17.9 MHz
    • FM: 87.5 - 108 MHz

    The set employs 19 transistors and 18 diodes. The elliptical loudspeaker measures 5 x 3 inch. There are connectors for external aerial and earth, a 5-pin DIN tape output and a 3 mm jack for earphones. Both ferrite rod and telescopic aerials are built-in.

    The Selena MB was made in 3 different versions: battery only, mains/battery (non-UK) and mains/battery (UK) with marine band.

    This radio is a Vega branded version of Selena {Селена} B-206 {Б-206} made by Minsk Radio Works.

  • Net weight (2.2 lb = 1 kg)
  • 9 lb (9 lb 0 oz) / 4.086 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
