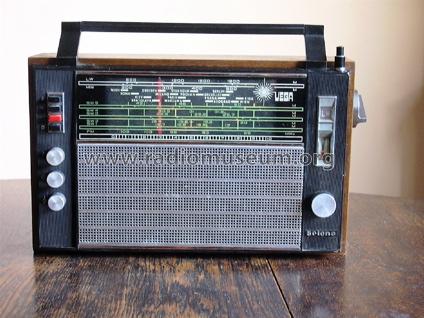

For model Selena MB FB-TR19-B206 battery, Vega (brand), Technical and Optical Equipment Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Vega (brand), Technical and Optical Equipment Ltd.; London
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 19: ГТ313 ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 ГТ322 МП35 МП39 П213 МП39 МП40 МП40 МП40 КТ315Б МП40 МП37 П213 П213
Main principle Super-Heterodyne (Super in general); ZF/IF 465/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.75 W (unknown quality)
from Radiomuseum.org Model: Selena MB FB-TR19-B206 [battery] - Vega brand, Technical and
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 248 x 115 mm / 14.2 x 9.8 x 4.5 inch
Notes

This portable receiver operates on batteries only (mains switch is inoperative) and covers the following wavebands:

  • LW: 150 - 408 kHz
  • MW: 525 - 1605 kHz
  • SW5: 5.97 - 7.3 MHz
  • SW4: 9.5 - 9.77 MHz
  • SW3: 11.7 - 12.1 MHz
  • SW2: 15.1 - 15.45 MHz
  • SW1: 17.7 - 17.9 MHz
  • FM: 87.5 - 108 MHz

The set employs 19 transistors and 18 diodes. The elliptical loudspeaker measures 5 x 3 inch. There are connectors for external aerial and earth, a 5-pin DIN tape output and a 3 mm jack for earphones. Both ferrite rod and telescopic aerials are built-in.

The Selena MB was made in 3 different versions: battery only, mains/battery (non-UK) and mains/battery (UK) with marine band.

This radio is a Vega branded version of Selena {Селена} B-206 {Б-206} made by Minsk Radio Works.

Net weight (2.2 lb = 1 kg) 9 lb (9 lb 0 oz) / 4.086 kg

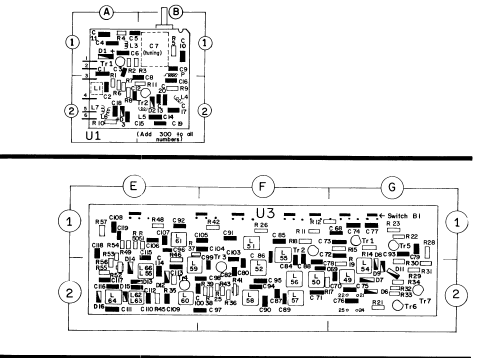

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Howard Craven. See "Data change" for further contributors.
