Stabilisiertes Netzgerät MW28

Stabilisiertes Netzgerät MW28; Minwa Electronics Co (ID = 2341560) Power-S Stabilisiertes Netzgerät MW28; Minwa Electronics Co (ID = 2341557) Power-S
Stabilisiertes Netzgerät MW28; Minwa Electronics Co (ID = 2341555) Power-S Stabilisiertes Netzgerät MW28; Minwa Electronics Co (ID = 2341558) Power-S
Stabilisiertes Netzgerät MW28; Minwa Electronics Co (ID = 2341561) Power-S
Use red slider bar for more.
Stabilisiertes Netzgerät MW28; Minwa Electronics Co (ID = 2341560) Power-S
Minwa Electronics Co: Stabilisiertes Netzgerät MW28 [Power-S] ID = 2341560 1101x1506
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stabilisiertes Netzgerät MW28, Minwa Electronics Co. Ltd., MW; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Minwa Electronics Co. Ltd., MW; Hong Kong
Year: 1985 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Stabilisiertes Netzgerät MW28 - Minwa Electronics Co. Ltd., MW
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 66 x 90 x 92 mm / 2.6 x 3.5 x 3.6 inch
Notes

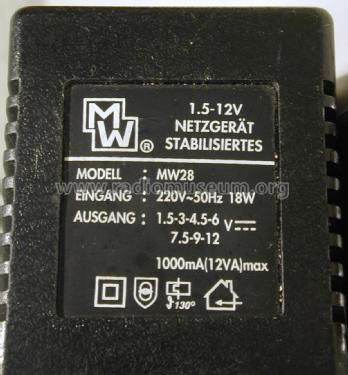

Minwa MW 28

1,5-12 V Stabilisiertes Netzteil

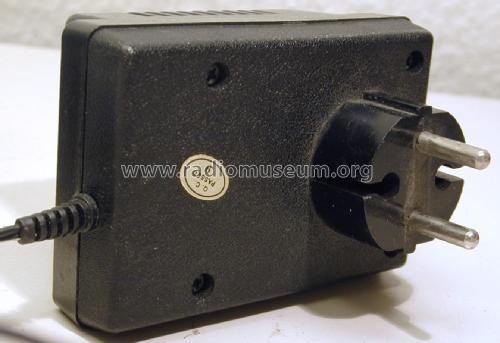

220-240 V 50Hz 18 W , Polarity switch +/- , LED on, Schuko plug

4-way Gerätestecker

Net weight (2.2 lb = 1 kg) 0.510 kg / 1 lb 2 oz (1.123 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
