Reiseempfänger E573

Reiseempfänger E573; MIRA Electronic, N (ID = 185609) Kit

Reiseempfänger E573; MIRA Electronic, N (ID = 1032970) Kit

Reiseempfänger E573; MIRA Electronic, N (ID = 1032971) Kit
Use red slider bar for more.
Reiseempfänger E573; MIRA Electronic, N (ID = 185609) Kit

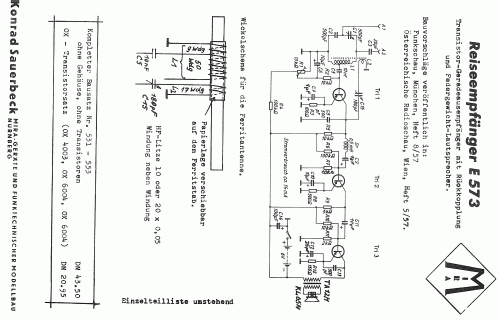

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  MIRA Electronic, Nürnberg
Year: 1957–1959 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 3:
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker -Loudspeaker incorporated, but system not known. / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Reiseempfänger E573 - MIRA Electronic, Nürnberg
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Bausatz Nr. 531-553 ohne Gehäuse; Lautsprecher: Federgewicht-(Kristall-)Lautsprecher KL65N. Veröffentlichungen in Funkschau Heft 8/57 und Österreichische Radioschau Heft 5/57.
Price in first year of sale 64.00 DM
Source of data -- Original prospect or advert

Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.



All listed radios etc. from MIRA Electronic, Nürnberg
Here you find 14 models, 12 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
