For model Desconocido - unknown, Misclhe; Santiago de Chile:

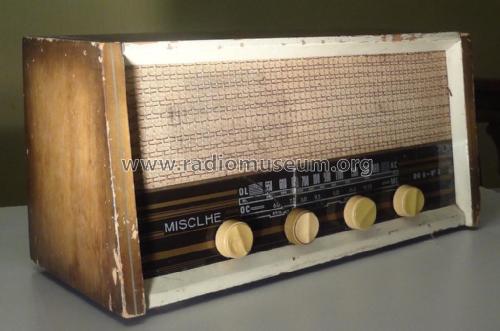

Frente

Country:  Chile
Manufacturer / Brand:  Misclhe; Santiago de Chile
Year: 1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Desconocido - unknown - Misclhe; Santiago de Chile
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 230 x 190 mm / 18.5 x 9.1 x 7.5 inch
Notes

OC: 5.9 ... 16.5 MHz

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
