- Country
- United States of America (USA)
- Manufacturer / Brand
- Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345801

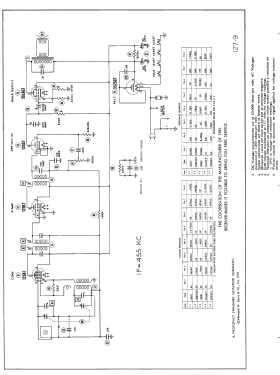

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 1268R - Mitchell Mfg. Co., ELCO, ESCO;
- Shape
- Book-shelf unit.
- Notes
-
Mitchell model 1268R is an AC operated superheterodyne receiver with electric clock.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 127 Folder 9 dated 3-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
