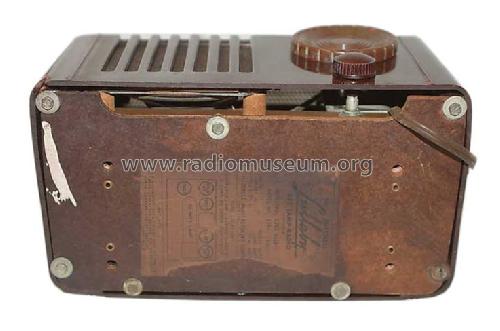

1251 'Lullaby' Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 661215) Radio 1251 'Lullaby' Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 661216) Radio
1251 'Lullaby' Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 1100019) Radio
Use red slider bar for more.
1251 'Lullaby' Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 267059) Radio
Mitchell Mfg. Co.,: 1251 "Lullaby" Bed Lamp Radio [Radio] ID = 267059 493x373
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1251 'Lullaby' Bed Lamp Radio, Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL:
By courtesy of William Kendrick, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 1251 "Lullaby" Bed Lamp Radio - Mitchell Mfg. Co., ELCO, ESCO;
Material Bakelite case
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 9.5 x 7.25 x 6 inch / 241 x 184 x 152 mm
Notes

Bed-Lamp-Radio, cabinet color ivory (painted bakelite). See also Lullaby 1250 with brown cabinet.

Source of data Collector's Guide to Antique Radios (7th Edition)
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Date 12/49, Set 55, Folder 14)

Model page created by Angelo Daniele. See "Data change" for further contributors.



All listed radios etc. from Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL
Here you find 44 models, 27 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
