Lullaby Bed Lamp Radio

Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 497512) Radio

Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 2646132) Radio

Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 496965) Radio
Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 1046805) Radio Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 1046806) Radio
Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 1447091) Radio Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 2646138) Radio
Use red slider bar for more.
Lullaby Bed Lamp Radio ; Mitchell Mfg. Co., (ID = 1046805) Radio
Mitchell Mfg. Co.,: Lullaby Bed Lamp Radio [Radio] ID = 1046805 700x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lullaby Bed Lamp Radio, Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL:
Scanned from the Radio Retailing March 1941.

Country:  United States of America (USA)
Manufacturer / Brand:  Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12Q7GT 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Lullaby Bed Lamp Radio - Mitchell Mfg. Co., ELCO, ESCO;
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 9.75 x 5.5 x 7.0625 inch / 248 x 140 x 179 mm
Notes

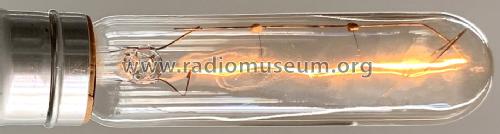

The bed lamp consists of a tubular type lamp and frosted curved lens for a maximum of glareless light.

Available in brown or ivory finish.

Price in first year of sale 19.95 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Radio Retailing (Radio & Television R.) (March 1941.)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 116.)
