8X-815L

8X-815L; Mitsubishi Electric (ID = 149126) Radio
8X-815L; Mitsubishi Electric (ID = 149124) Radio 8X-815L; Mitsubishi Electric (ID = 149125) Radio
8X-815L; Mitsubishi Electric (ID = 263919) Radio 8X-815L; Mitsubishi Electric (ID = 2088316) Radio
8X-815L; Mitsubishi Electric (ID = 2088317) Radio 8X-815L; Mitsubishi Electric (ID = 2088318) Radio
8X-815L; Mitsubishi Electric (ID = 2088319) Radio 8X-815L; Mitsubishi Electric (ID = 2088320) Radio
Use red slider bar for more.
8X-815L; Mitsubishi Electric (ID = 149124) Radio

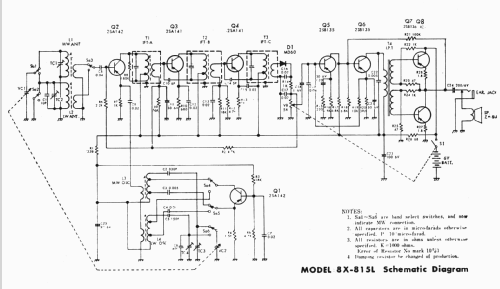

Mitsubishi Electric: 8X-815L [Radio] ID = 149124 648x498
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8X-815L, Mitsubishi Electric Corporation

Country:  Japan
Manufacturer / Brand:  Mitsubishi Electric Corporation
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA142 2SA142 2SA141 2SA141 2SB135 2SB135 2SB136 2SB136 MD60
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: 8X-815L - Mitsubishi Electric
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 140 x 85 mm / 7.9 x 5.5 x 3.3 inch
Notes

Socket for an earphone.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data - - Manufacturers Literature
Literature/Schematics (1) - - Data from my own collection

Model page created by William J Blanchflower. See "Data change" for further contributors.
