8X-811

8X-811; Mitsubishi Electric (ID = 1997161) Radio 8X-811; Mitsubishi Electric (ID = 1997162) Radio

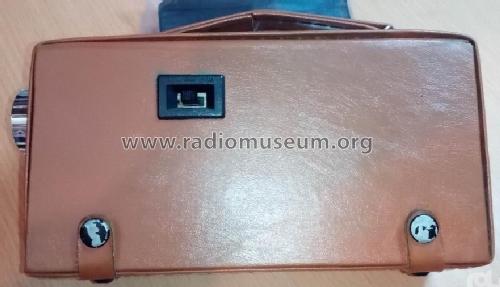

8X-811; Mitsubishi Electric (ID = 1997163) Radio 8X-811; Mitsubishi Electric (ID = 1997165) Radio
8X-811; Mitsubishi Electric (ID = 1997166) Radio 8X-811; Mitsubishi Electric (ID = 1997167) Radio
8X-811; Mitsubishi Electric (ID = 1997168) Radio
Use red slider bar for more.
8X-811; Mitsubishi Electric (ID = 1997161) Radio
Mitsubishi Electric: 8X-811 [Radio] ID = 1997161 637x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8X-811, Mitsubishi Electric Corporation:
Source: esam.ir, #693624, Seller: ramzy731, Item Location: Urmieh, Iran.

Country:  Japan
Manufacturer / Brand:  Mitsubishi Electric Corporation
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 8X-811 - Mitsubishi Electric
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

SW: 3.8 to 12.5 MHz

Model page created by Daniel Rosha. See "Data change" for further contributors.
