Colour TV Receiver CT-202S
Mitsubishi Electric Corporation
- Country
- Japan
- Manufacturer / Brand
- Mitsubishi Electric Corporation
- Year
- 1973 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 330608

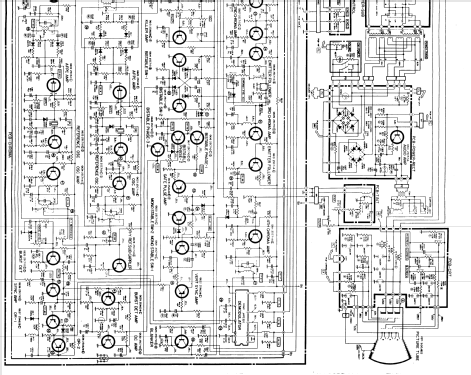

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 510CJB22
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

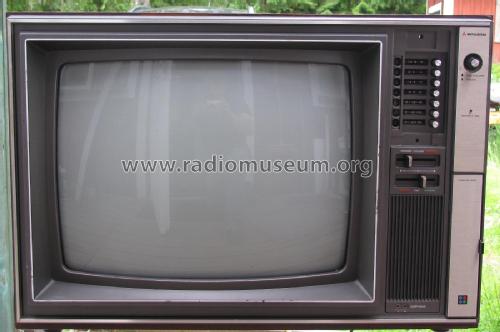

- Model: Colour TV Receiver CT-202S - Mitsubishi Electric
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 465 x 400 mm / 26.4 x 18.3 x 15.7 inch
- Notes
-
Farbfernseher für CCIR B/G (PAL) System; nicht mit PAL-Decoder, sondern mit PAL/NTSC-Transcoder und NTSC-Decoder ausgestattet.
Gehäuse aus Spanplatte mit Holzimitation, Front aus Plastik.
Modell wahrscheinlich für den skandinavischen Markt.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Torbjörn Forsman. See "Data change" for further contributors.
