• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155348

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

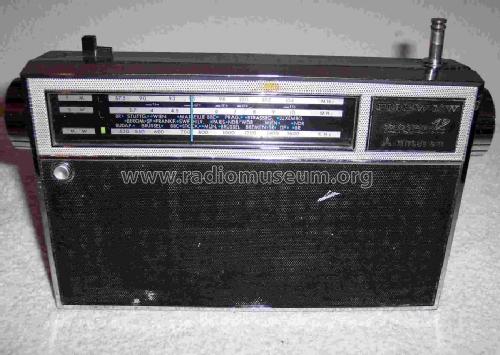

• Model: Solid State 12 High Sensitivity FX-905S - Mitsubishi Electric

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 135 x 55 mm / 9.6 x 5.3 x 2.2 inch

• Notes
• FM.98,5-104 MHz, SW 3,7-10 MHz, MW 520-1605 KHz. Solid State 12 High Sensitivity Mitsubishi - Phone, Phono In, Tone selector, Button display light.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Author
• Model page created by J. Virgilio Santos. See "Data change" for further contributors.
