• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1979 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 118675

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2SC828 2SC828 2SC828 2SC828 2SC828 HA1377 1N4001 1N5406

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / 8 × 1,5 / 12 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 12 cm = 4.7 inch

• Power out
• 20 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Portable-Verstärkeranlage PPA20 - Monacor, Bremen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 150 x 580 x 100 mm / 5.9 x 22.8 x 3.9 inch

• Notes

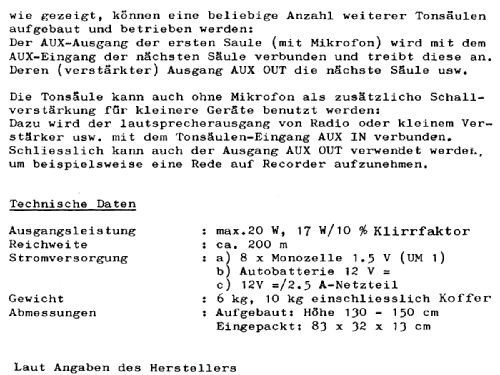

• Portable-Verstärkeranlage. Das Modell PPA-20 ist ein kleines komplettes Beschallungssystem, bestehend aus Mikrofon, Verstärker und Lautsprechersäule. Zusammenlegbar, im Transportkoffer. Aufgebaute Höhe 1300 -1500 mm.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
