• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1980 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 264371

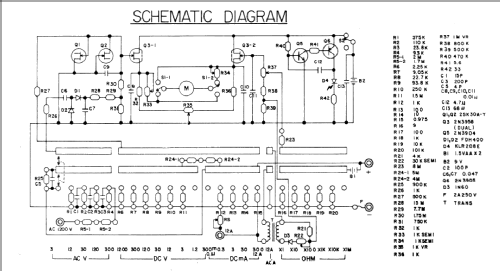

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2SK30 2SK30 2N3958 2N3904 2N3905 1N60

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / AA: 2 x 1,5 & 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Vielfach-Messinstrument MT 505 - Monacor, Bremen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 125 x 170 x 50 mm / 4.9 x 6.7 x 2 inch

• Notes

• Hochohmiges Transistor-Voltmeter.

  Gleichspannung      : 0,3V / 1,2V / 3V / 12V / 30V / 120V / 300V / 1200V, 2,5%, Ri 10MΩ,

  Gleichstrom            : 0,1µA / 0,3mA / 3mA / 30mA /300mA /12A, 2,5%,

  Wechselspannung   : 3V / 12V / 30V / 120V / 300V / 1200V, 3,5%, Ri 1MΩ,

  Wechselstrom         : 0-12A, 4%,

  Widerstand             : 0-1K / 10K / 100K / 1M /10M /1000M, 2,5%.



• Mentioned in

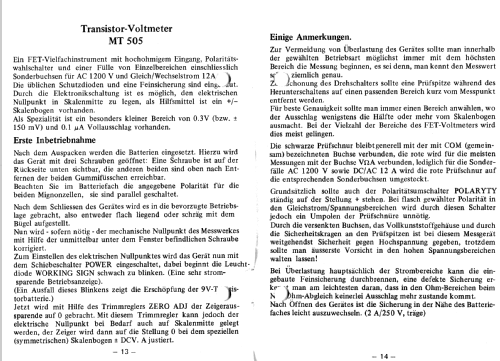

• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.
