FM Stereo Tuner FM-100X

FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904541) Radio FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904540) Radio
FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904542) Radio FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904543) Radio
FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904544) Radio FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904545) Radio
Use red slider bar for more.
FM Stereo Tuner FM-100X; Monarch Electronics (ID = 1904541) Radio
Monarch Electronics: FM Stereo Tuner FM-100X [Radio] ID = 1904541 1400x738
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo Tuner FM-100X, Monarch Electronics Int. Inc.; North Hollywood, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Monarch Electronics Int. Inc.; North Hollywood, CA
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6AQ8 6AQ8 6BA6 6BA6 6BA6 6BN8 6C4 6X4
schematic requested
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Stereo Tuner FM-100X - Monarch Electronics Int. Inc.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 300 x 104 x 203 mm / 11.8 x 4.1 x 8 inch
Notes

Monarch FM-100X, FM Stereo Tuner;
Mono/Stereo switch, Noise filter & AFC.

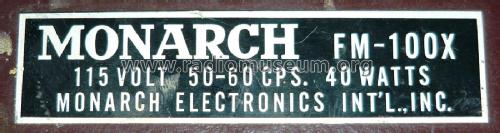

Power consumption : 40W

Net weight (2.2 lb = 1 kg) 7 lb 0 oz (7 lb) / 3.178 kg
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
