TA-56M

TA-56M ; Monitor Equipment (ID = 433816) Radio

TA-56M ; Monitor Equipment (ID = 433817) Radio

TA-56M ; Monitor Equipment (ID = 507826) Radio

TA-56M ; Monitor Equipment (ID = 507830) Radio

TA-56M ; Monitor Equipment (ID = 507831) Radio

TA-56M ; Monitor Equipment (ID = 507832) Radio
TA-56M ; Monitor Equipment (ID = 2434387) Radio TA-56M ; Monitor Equipment (ID = 2434388) Radio
TA-56M ; Monitor Equipment (ID = 507825) Radio
Use red slider bar for more.
TA-56M ; Monitor Equipment (ID = 2434387) Radio

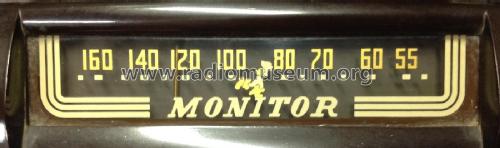

Monitor Equipment: TA-56M [Radio] ID = 2434387 1400x1007
Select picture or schematic to display from thumbnails on the right and click for download.
For model TA-56M, Monitor Equipment Corp.

Country:  United States of America (USA)
Manufacturer / Brand:  Monitor Equipment Corp.
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 14Q7 14A7 14B6 50A5 35Y4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: TA-56M - Monitor Equipment Corp.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

See similar model Everbest TA56H.

Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

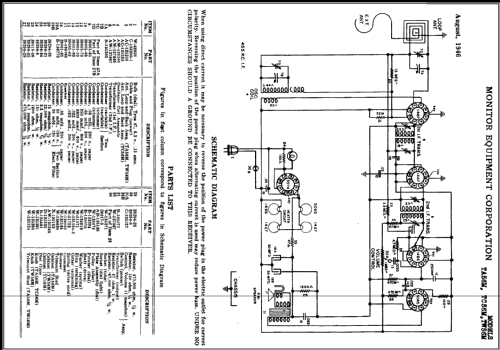

Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in Antique Radios, Johnson 1986
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 6, Folder 466-18)


All listed radios etc. from Monitor Equipment Corp.
Here you find 9 models, 8 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
