- Country
- United States of America (USA)
- Manufacturer / Brand
- Monitoradio; Indianapolis (IN)
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196046
-
- alternative name: Radio Apparatus Corp.; Indianap.
Source Sams Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz; 2 AF stage(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: MR-32 - Monitoradio; Indianapolis IN
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Monitoradio model MR-32 is an AC operated FM superheterodyne receiver. Tuning Range = 30 - 50 mHz.
- Literature/Schematics (1)

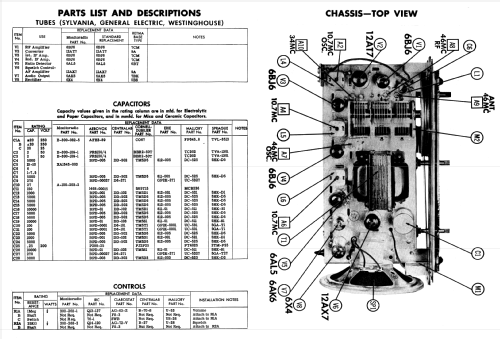

- Photofact Folder, Howard W. SAMS (Set 233, Folder 5, dated 3-54)
- Author
- Model page created by Richard Watts. See "Data change" for further contributors.
