• Country
• Japan

• Manufacturer / Brand
• Montclair (Custom); (where?)

• Year
• 1971–1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 272246

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

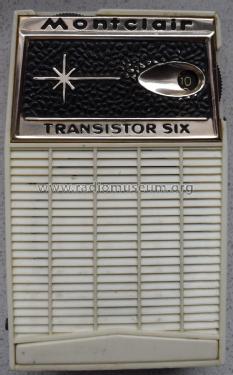

• Model: Transistor Six 601 - Montclair Custom; where?

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 112 x 35 mm / 2.8 x 4.4 x 1.4 inch

• Notes

• custom made in HongKong for US market

• Net weight (2.2 lb = 1 kg)
• 0.173 kg / 0 lb 6.1 oz (0.381 lb)

• Author
• Model page created by Hans-Peter Kexel. See "Data change" for further contributors.
