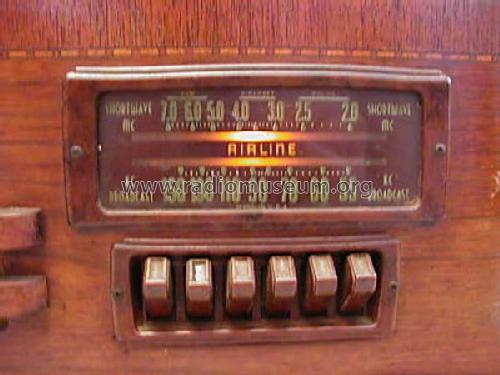

Montgomery Ward & Co: 04BR-609A [Radio] ID = 792819 600x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model 04BR-609A, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
Quelle Bechstein.

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 04BR-609A - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes BC (540-1550 kHz) and SW (1.95-7.0 MHz) bands. Loop antenna as first RF circuit for BC band.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
