Airline 04BR-730A Order= P162 B 730

Montgomery Ward & Co. (Wards, Airline); Chicago, IL

  • Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 47516
    • Brand: Airline or Air-Line

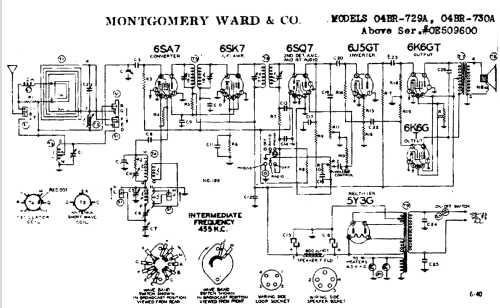

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Airline 04BR-730A Order= P162 B 730 - Montgomery Ward & Co. Wards,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 26 x 38.25 x 12 inch / 660 x 972 x 305 mm
  • Notes
  • BC (535-1600 kHz) and SW (5.4-18.4 MHz) bands. Loop antenna as first RF circuit for BC band. Push-pull audio amplifier. 6 or 10 inch speaker depending on cabinet.
  • Price in first year of sale
  • 36.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
