04WG803B Order= P462 B 803 ; Montgomery Ward & Co (ID = 361628) Radio
Montgomery Ward & Co: 04WG803B Order= P462 B 803 [Radio] ID = 361628 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 04WG803B Order= P462 B 803, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
Picture courtesy of eBay seller special_relativity

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SA7 6SK7 6SQ7 6SQ7 6AD6G 6K6GT 6K6GT 5Y3G
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 04WG803B Order= P462 B 803 - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 310 x 570 x 285 mm / 12.2 x 22.4 x 11.2 inch
Notes BC, 49, 31, 25, 19M
Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)
Price in first year of sale 29.95 $
External source of data Ernst Erb

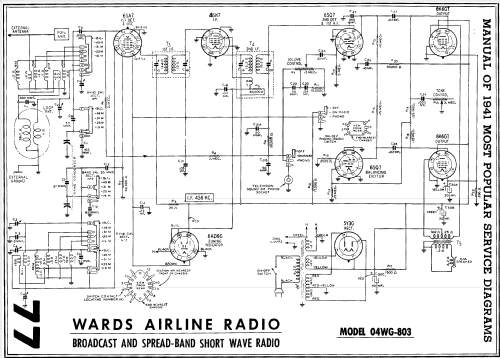

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 04, 1941

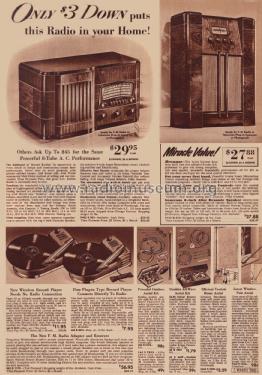

Literature/Schematics (4) Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1940/41, No. 133, page 701. Spring/Summer 1941, page 699.)


All listed radios etc. from Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Here you find 2178 models, 1321 with images and 1688 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
