Airline 13 Order= 662 D 13
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47587
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 262 kHz; 1 AF stage(s); Neutrodyne
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

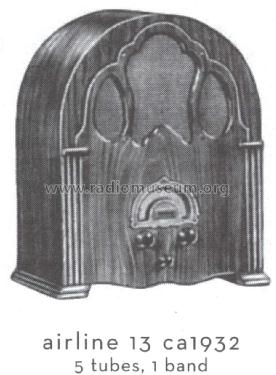

- Model: Airline 13 Order= 662 D 13 - Montgomery Ward & Co. Wards,
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 13.75 x 17.5 x 8 inch / 349 x 445 x 203 mm
- Notes
-
The mixer is of the autodyne type, wherein it functions as a mixer and also as an oscillator. The IF transformer is of special construction combining the coupling transformer and also the oscillator system.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- Cathedral & Tombstone Radios (page 43.)
- Literature/Schematics (1)
- Table Top Radios Vol. 4 Stein 2003 (page 43.)
- Literature/Schematics (3)
- Montgomery Ward Catalogs (Wards, Airline) (Spring & Summer 1932)
