• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85393
    • Brand: Airline or Air-Line

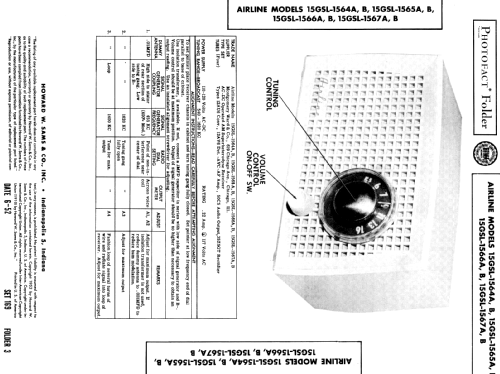

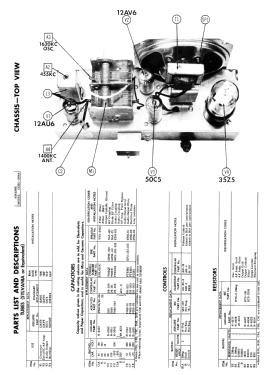

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC: 50 to 60Hz, 110 to 120V or DC: 110 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.9 W (1.8 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Airline 15GSL-1565B - Montgomery Ward & Co. Wards,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 8.375 x 5.5 x 4.875 inch / 213 x 140 x 124 mm
  • Notes
  • The Montgomery Ward Airline 15GSL-1565B is an AC/DC operated 4 tube BC band receiver.  The BC band frequency tuning range is 540 to 1620kHz. Uses couplate in audio circuit.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Catalog Number Cabinet Color L2 Oscillator Coil
    15GSL-1564A 62 A 1564 M White
    15GSL-1564B 62 A 1564 M White Different Coil
    15GSL-1565A 62 A 1565 M Walnut
    15GSL-1565B 62 A 1565 M Walnut Different Coil
    15GSL-1566A 62 A 1566 M Red
    15GSL-1566B 62 A 1566 M Red Different Coil
    15GSL-1567A TBD Light Green, Dark Green or Gray
    15GSL-1567B TBD Light Green, Dark Green or Gray Different Coil
