Airline 15WG-2745C

• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47701

• • Brand: Airline or Air-Line

• Picture

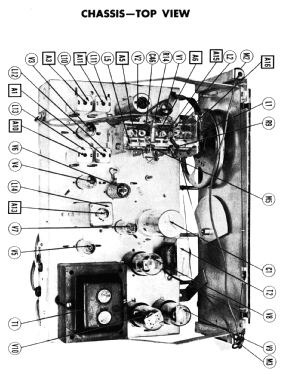

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 12AT7 6BA6 6BA6 6AL5 6AV6 6AV6 6K6GT 6K6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 15WG-2745C - Montgomery Ward & Co. Wards,

• Shape
• Console with any shape - in general

• Notes

• Airline model 15WG-2745C is an AC operated combination phono-radio, AM-FM superheterodyne receiver with loop antenna.





• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 130, folder 2, dated 4-51)
