- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1954/1955
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 275504
-
- Brand: Airline or Air-Line
Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 45XGAA-948A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.5 x 6.75 x 11.25 inch / 343 x 171 x 286 mm
- Notes
-

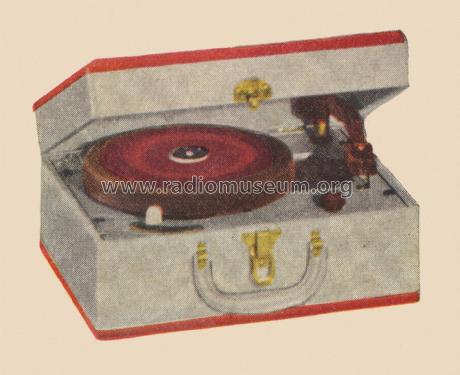

AC Operated Phono Amplifier With 3 Speed Manual Recrd Player.
- Price in first year of sale
- 18.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 332 Folder 2 dated 10-56)
- Literature/Schematics (2)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1954/55, page 666 & 667.)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
