Airline 62-195 Order= 162 A 195

Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 47882
    • Brand: Airline or Air-Line

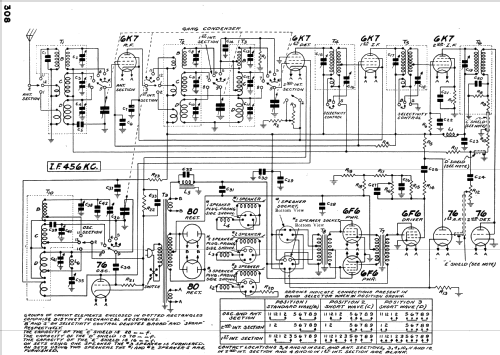

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz, 115 Volt
  • Loudspeaker
  • 3 Loudspeakers / Ø 12 inch = 30.5 cm
  • Power out
  • 15 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Airline 62-195 Order= 162 A 195 - Montgomery Ward & Co. Wards,
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 23.25 x 41 x 11.75 inch / 591 x 1041 x 298 mm
  • Notes

  • The Airline 62-195 is an AC operated 12 tube BC, Police and SW band receiver.  Has push-pull output stage.  Late production models have Qty(3) electrostatic 12" speakers, while early production models have Qty(2) electrostatic 12" speakers.  The Airline model 62-195X is similar to this model except uses the 25Hz power transformer.  Cabinet uses walnut veneer.

    Band Frequency Ranges are as follows:
    BC Band (B Band)..............535 - 1730kHz
    Police Band (C Band).........1.715 - 5.8MHz
    SW Band (D Band).............5.75 - 18.3MHz

    The same schematic and chassis for this model is also used for models 62-192, 62-192X and 62-195X.

    This model was built for Montgomery Ward by the Wells Gardner Co, Chicago, ILL

  • Price in first year of sale
  • 76.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Mentioned in
  • Rider's 7-3, 7-4, 7-5, 7-6
