62-390 Order= P462 A 390

62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 598340) Radio
62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 1880121) Radio 62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 1880122) Radio

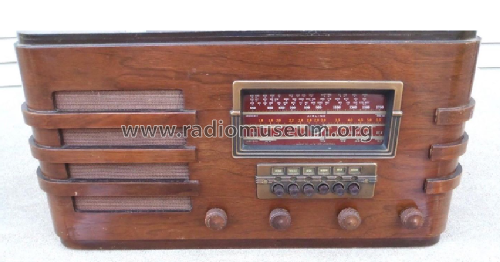

62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 1880124) Radio 62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 2501244) Radio
62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 2501246) Radio
Use red slider bar for more.
62-390 Order= P462 A 390 ; Montgomery Ward & Co (ID = 1880121) Radio
Montgomery Ward & Co: 62-390 Order= P462 A 390 [Radio] ID = 1880121 1400x903
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62-390 Order= P462 A 390, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
Scan from catalog Montgomery Ward, 1938/39, page 582.

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7 6K8 6J5G 6K7 6U5 6J5G 6Q7G 6K6G 5Y3G
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 62-390 Order= P462 A 390 - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 22 x 11.5 x 11 inch / 559 x 292 x 279 mm
Notes BC (535-1720 kHz) band with 6 automatic station selector buttons. TROP (1.69-5.6 MHz) and SW (5.5-18.0 MHz) bands. Tuning eye. 6 or 10 inch speaker.
Price in first year of sale 38.95 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Rider's 9-18, 9-47, 9-53, 9-54
Literature/Schematics (4) Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1938/39, No. 129, page 582.)
