62-452 Order= P462 B 452
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48102
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 62-452 Order= P462 B 452 - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 21 x 11.5 x 9.5 inch / 533 x 292 x 241 mm
- Notes
- Push-pull audio amplifier.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Rider's 9-23, 9-24
- Literature/Schematics (1)

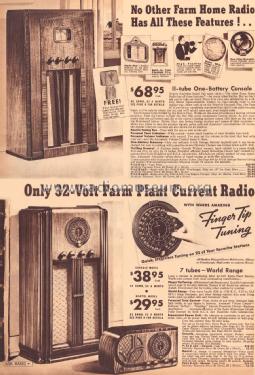

- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1938, No.128, page 462.)
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1937/38, No.127, page 656.)
