• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 48118
    • Brand: Airline or Air-Line

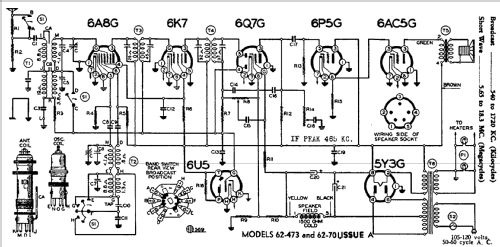

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 1.6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 62-473 Order= P162 A 473 [early] - Montgomery Ward & Co. Wards,
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 22 x 38 x 11 inch / 559 x 965 x 279 mm
  • Notes
  • BC (540-1720 kHz) and SW (5.65-18.3 MHz) bands. Tuning eye.

    Same Model but with Electric Tuning: Model 62-470.

  • Price in first year of sale
  • 28.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Mentioned in
  • Rider's 9-65, 9-67
