62-486 Order= P462 B 486
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48124
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 62-486 Order= P462 B 486 - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.25 x 9.625 x 8.25 inch / 413 x 244 x 210 mm
- Notes
-
Push-pull audio amplifier. Vibrator for B+
Radio with No. P162 B 6637 Wincharger: Order= P162 B 6646, Radio with No. P162 B 6617 Gas Engine Battery Charger: Order= P162 B 6642.
- Price in first year of sale
- 27.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Rider's 11-14
- Literature/Schematics (3)

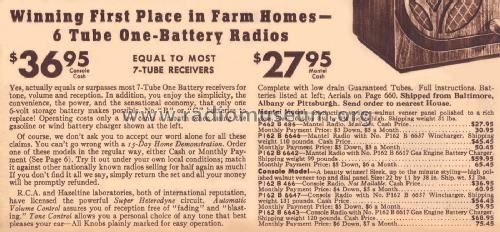

- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1938, No.128, page 464.)
- Literature/Schematics (4)

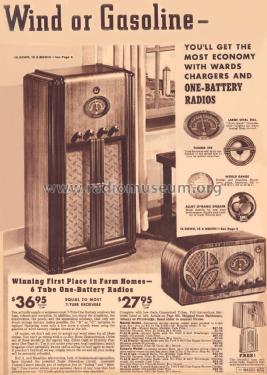

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1937/38, No.127, page 655.)
