62-650

62-650 ; Montgomery Ward & Co (ID = 598324) Radio

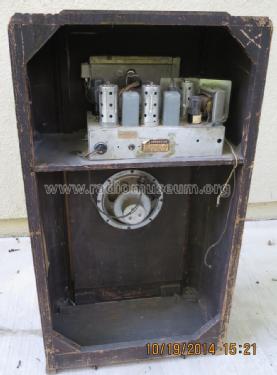

62-650 ; Montgomery Ward & Co (ID = 1728684) Radio 62-650 ; Montgomery Ward & Co (ID = 1728686) Radio
Use red slider bar for more.
62-650 ; Montgomery Ward & Co (ID = 1728684) Radio
Montgomery Ward & Co: 62-650 [Radio] ID = 1728684 678x1018
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62-650, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1938 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D8G 6S7G 6S7G 6T7G 6AB5 6G6G
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 62-650 - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Console with Push Buttons.
Notes BC (528-1730 kHz) band with 6 pushbutton station selectors and SW (5.75-18.3 MHz) band. Tuning eye. Built-in vibrator for B+
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Rider's 9-46, 9-48
