For model Airline 64BR-1514A Order= 62 C 1514 M, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1946–1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SG7 12SA7 12SF7 12SJ7 35L6 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Airline 64BR-1514A Order= 62 C 1514 M - Montgomery Ward & Co. Wards,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 13 x 8 x 7.75 inch / 330 x 203 x 197 mm
Notes

Ivory plastic cabinet. Same model with walnut finish: Model Airline 64BR-1513A.

Price in first year of sale 38.95 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set #24 Folder # 4714-4)

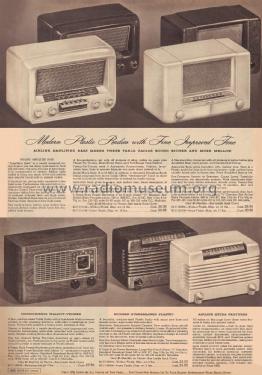

Literature/Schematics (2) Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1947, page 666. Fall/Winter 1947/48, page 858.)
