- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1946 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 48264
-
- Brand: Airline or Air-Line
Beitman
Sams photofact.
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification; 2 AF stage(s)
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.75 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

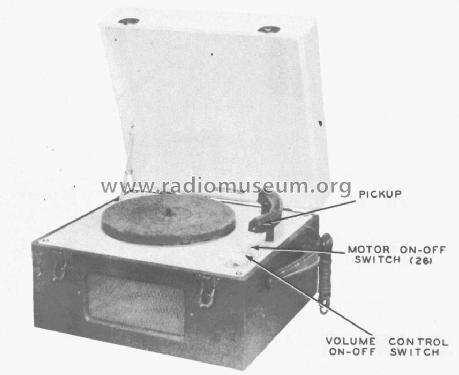

- Model: 64BR-916A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Notes
- Alternatively speaker PM, 4" x 6" available.
- External source of data
- Ernst Erb
- Source of data

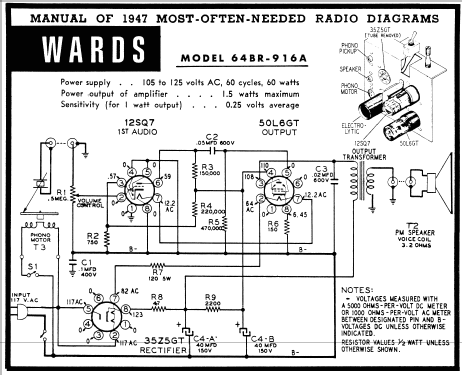

- Beitman Radio Diagrams, Vol. 07, 1947
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (1)

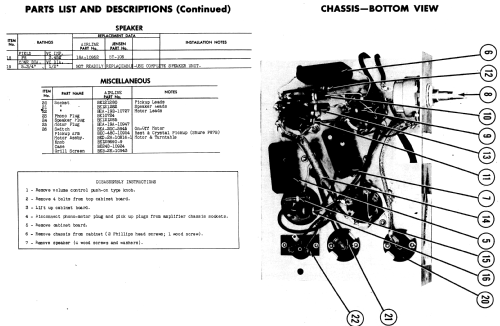

- Photofact Folder, Howard W. SAMS (Set 3 folder 463-34)
