Airline 64BR-1503B Order= 62 C 1503M
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1946–1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71303
-
- Brand: Airline or Air-Line
Copy gen. von Terry Schwartz Radio Attic

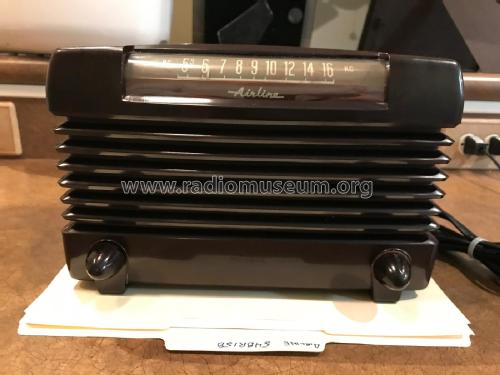

Front
RECONSTRUCTED LABEL
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Airline 64BR-1503B Order= 62 C 1503M - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 10.625 x 6.75 x 6.125 inch / 270 x 171 x 156 mm
- Notes
-
Model 1503 is with Walnut Finish. Model 1504 with Ivory Finish.
4 Tubes plus Power Rectifier. Large 4 by 6-inch Alnico "5" Speaker.
- Price in first year of sale
- 23.50 $
- Literature/Schematics (1)

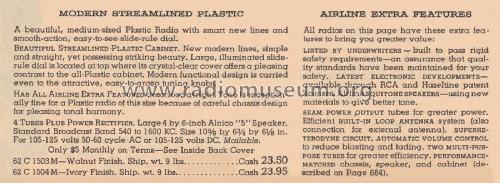

- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1947, page 666. Fall/Winter 1947/48, page 859.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 2288 models, 1453 with images and 1786 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Montgomery Ward & Co. (Wards, Airline); Chicago, IL
