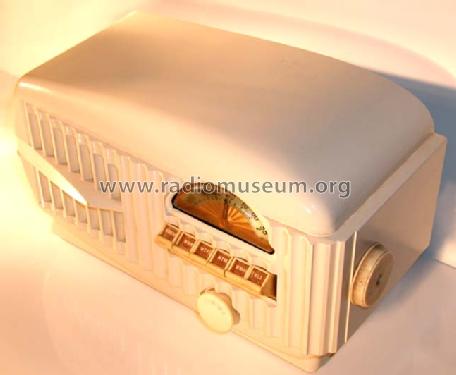

Montgomery Ward & Co: 84BR-1507B [Radio] ID = 266577 648x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model 84BR-1507B, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:
By courtesy of William Kendrick, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BD6 12SA7 12BD6 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: 84BR-1507B - Montgomery Ward & Co. Wards,
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949
