84HA-1527A ; Montgomery Ward & Co (ID = 1850522) Radio
Montgomery Ward & Co: 84HA-1527A [Radio] ID = 1850522 933x654
Select picture or schematic to display from thumbnails on the right and click for download.
For model 84HA-1527A, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner

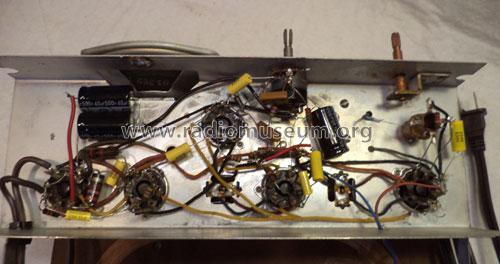

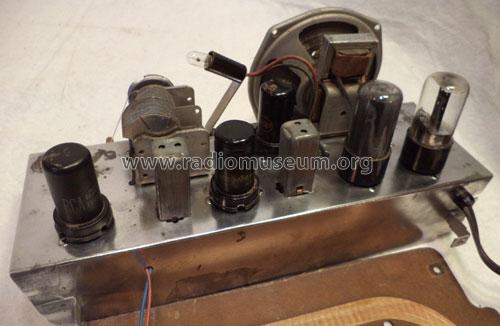

Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: 84HA-1527A - Montgomery Ward & Co. Wards,

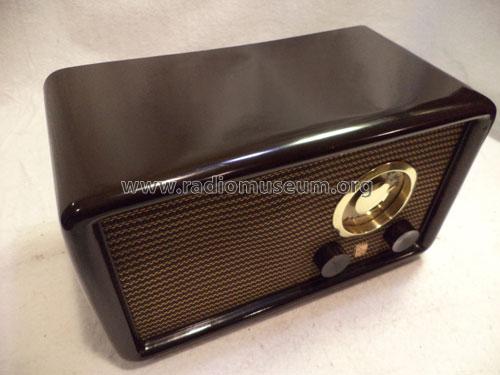

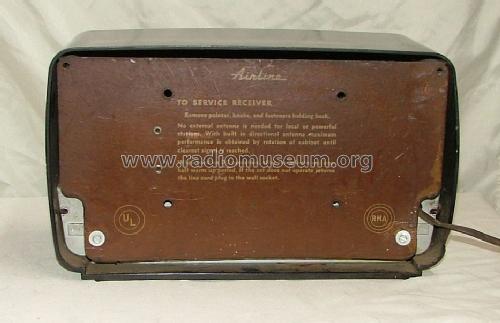

Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 7.75 x 6.75 inch / 330 x 197 x 171 mm
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950
