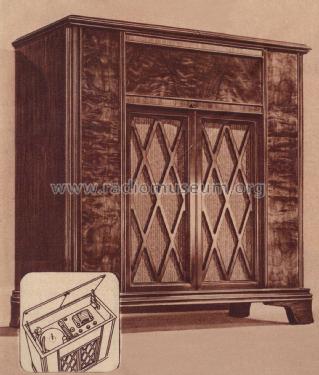

Airline 04BR-909A Order= 162 B 909

Montgomery Ward & Co. (Wards, Airline); Chicago, IL

  • Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 276170
    • Brand: Airline or Air-Line

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 5 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Airline 04BR-909A Order= 162 B 909 - Montgomery Ward & Co. Wards,
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 36 x 36 x 18 inch / 914 x 914 x 457 mm
  • Notes
  • The Airline 04BR-909A is an AC operated 9 tube combination BC and SW band receiver, record player and recorder.  The frequency tuning bands are as follows: BC (540-1600 kHz), SW1 (5.9-6.1 MHz), SW2 (9.1-10.0 MHz), SW3 (11.4-12.1 MHz) and SW4 (14.9-15.4 MHz) bands. Six pushbutton station selectors. Tuning eye. Push-pull audio amplifier.

    Model Airline 909 is a Record Changer, Radio and Recorder. Same Model but without Recorder: Model 04BR-906A.

  • Price in first year of sale
  • 119.50 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
