Airline 1658B
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 267035
-
- Brand: Airline or Air-Line

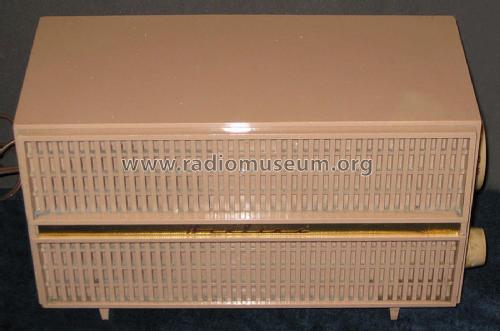

Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Airline 1658B - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9.75 x 5.5 x 4.875 inch / 248 x 140 x 124 mm
- Notes
-
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet 1655B Mocha 1656B White 1658B Pink Similar "Budget Model" with gray cabinet, plain front, black trim band: Model Airline 1659.
- Price in first year of sale
- 16.95 $
- Mentioned in
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1957/58, page 787.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
