Airline 25WG-3070A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1953 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 364380

• • Brand: Airline or Air-Line

• Picture

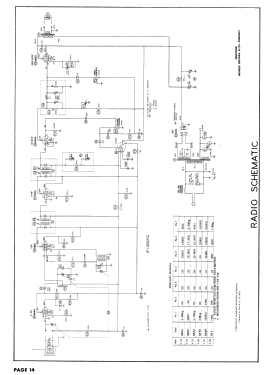

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 28

• Valves / Tubes
• 6BQ7 or 6BZ7 6J6 6CB6 6CB6 6CB6 6AL5 12AT7 6AH6 6AU6 6AV6 6AU6 6AU6 6AL5 6BE6 6SN7GTA or 6BL7GT 6AL5 6SN7GTA 6BQ6GT 6W4GT 1B3GT 5U4G 6BA6 6BE6 6BA6 6AV6 6AQ5 6X4 21MP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 25WG-3070A - Montgomery Ward & Co. Wards,

• Shape
• Console with any shape - in general

• Notes

• Airline model 25WG-3070A is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a TV-AM-phono combination , a VHF tuner and picture tube 21MP4.





• Literature/Schematics (2)

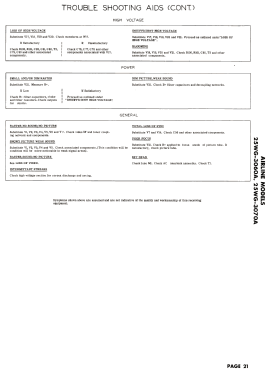

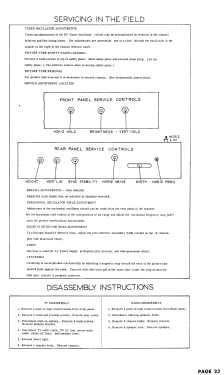

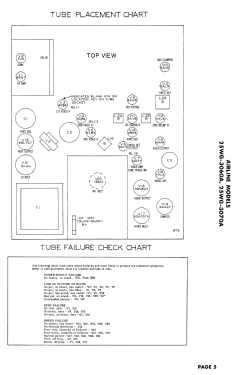

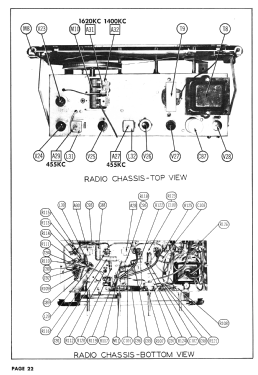

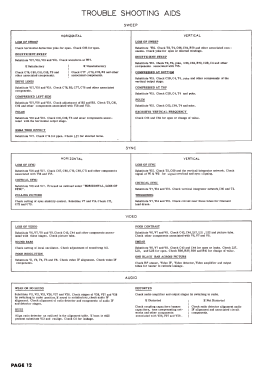

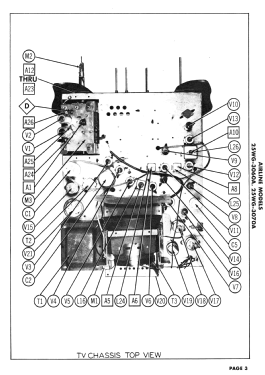

• Photofact Folder, Howard W. SAMS (Set 212, Folder 2, dated 8-53)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
