• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1946–1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121062

• • Brand: Airline or Air-Line

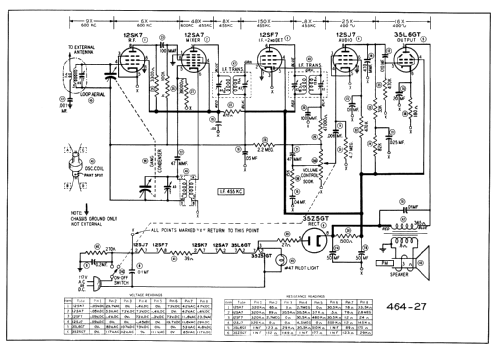

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SF7 12SJ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.75 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

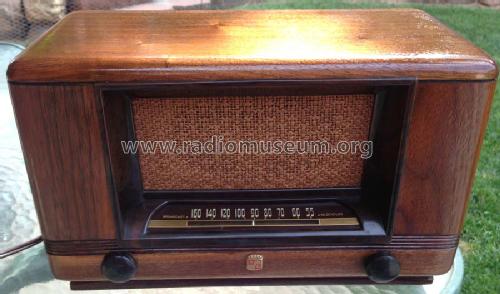

• Model: Airline 64WG-1804B Order= 62 A 1804M - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.5 x 8.5 x 6 inch / 343 x 216 x 152 mm

• Notes
• 4" x 6" PM elliptical speaker.
  Photofact see under Trade name: Airline.

• Price in first year of sale
• 34.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 4, Folder 464-27)

• Literature/Schematics (2)
• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1947/48, page 858.)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
