Airline GAA-2509A
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170013
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline GAA-2509A - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18.75 x 11.5 x 19.25 inch / 476 x 292 x 489 mm
- Notes
-

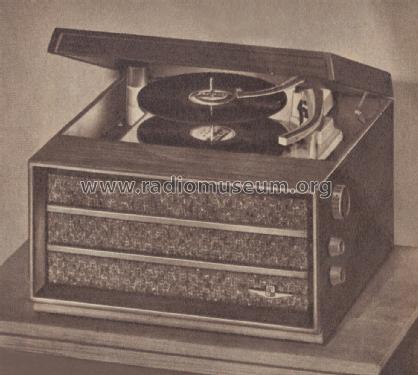

Model Airline GAA-2509A is a 4-speed automatic phonograph and AM radio with blond oak veneer. Same model but with mahogany veneer: Model Airline GAA-2508A.
EE: This model was first dated 1961 according the SAMS schematic of 1961. We should never date a model according to a schematic - not even if it is the original manufacturer's schematic, but by first hand information like ads, sales brochures, catalogs - or at least bring a question mark. The true market introduction is our goal!
- Price in first year of sale
- 96.95 $
- Mentioned in

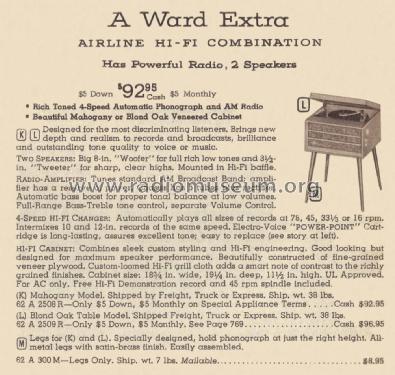

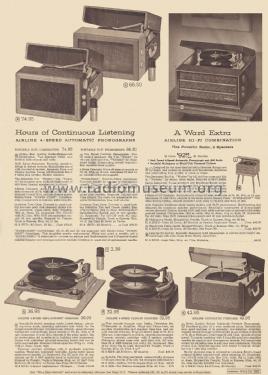

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1956/57, page 785.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 4-61, Set 525, Servicer)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
