- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC: 25-60 Hz, 110-120V or DC: 110-120 Volt
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Airline GEN-1660A - Montgomery Ward & Co. Wards,
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 6.375 x 5 inch / 279 x 162 x 127 mm
The Montgomery Ward Airline GEN-1660A is an AC/DC operated 5 tube BC band receiver. The BC band frequency tuning range is 540-1600kHz. Has a Phono-jack.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet Color Speaker(s) GEN-1655A Mocha brown Qty(1) - 4" GEN-1656A White Qty(1) - 4" GEN-1657A Mahogany Qty(1) - 4" GEN-1658A Pink Qty(1) - 4" GEN-1660A Ivory Qty(2) - 4" GEN-1661A Light Torquoise Qty(2) - 4"
- Price in first year of sale
- 21.95 $
- Mentioned in

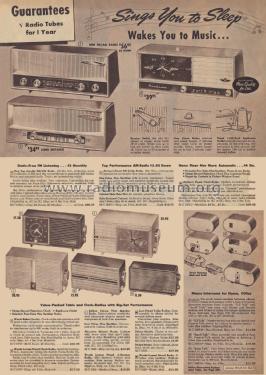

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1956/57, page 786. Fall/Winter 1957/58, page 787.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 358, folder 1 dated 5-57)
- Literature/Schematics (2)
- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1958, page 524. Fall/Winter 1958/59, page 781. Spring/Summer 1959, page 627.)
- Model page created by John Kusching. See "Data change" for further contributors.
