- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- 1956 ?
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Valves / Tubes
- 3BC5 5AT8 3CB6 3CB6 5U8 6AW8 3BN6 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6GA 19AU4 1X2B 17HP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Wooden case
- from Radiomuseum.org
- Model: Airline GSL-4014A - Montgomery Ward & Co. Wards,
- Tablemodel, with any shape - general.
Airline model GSL-4014A is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF tuner R-1423 and picture tube 17HP4.
- Literature/Schematics (1)

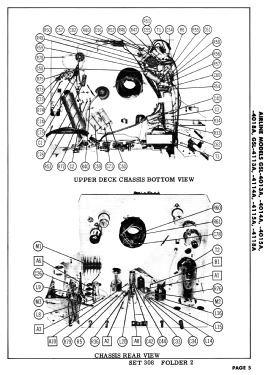

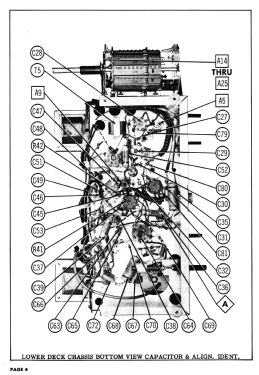

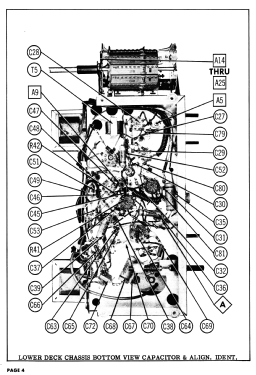

- Photofact Folder, Howard W. SAMS (Set 308 Folder 2 dated 3-56)
- Model page created by Dirk Taekels. See "Data change" for further contributors.
