• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1927 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 270517

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A UX201A

• Main principle
• TRF without regeneration; 3 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker

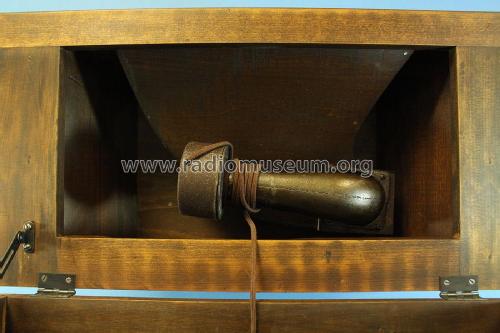

• Horn

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline Model E - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 22.25 x 16.325 x 11.625 inch / 565 x 415 x 295 mm

• Notes

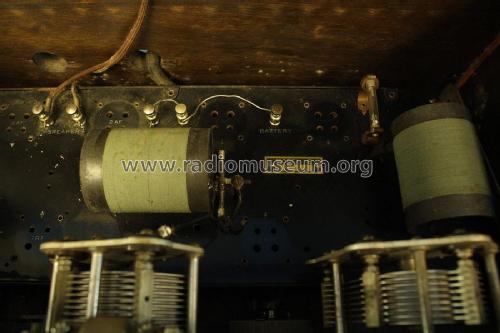

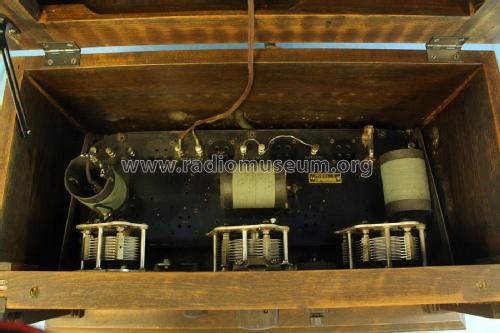

• Single tuning dial 6-tube TRF receiver with built-in horn speaker.

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
